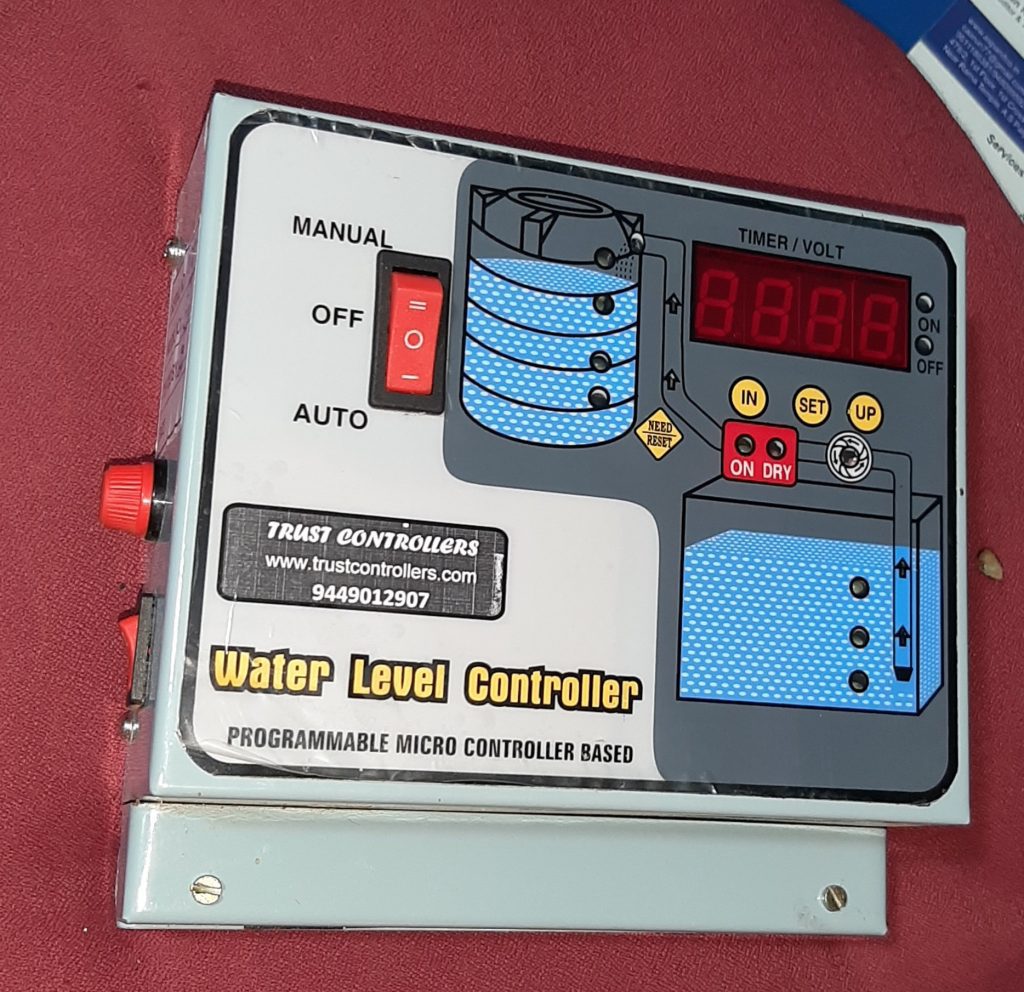

This is totally a special Deluxe Model which has the function of TIC-BTA With etc., in built timer. This model is used only for the broewell motor where the water source is very very less. Water comes for 10 or 15 minutes & again source starts after 1hour or 2hour & as actual. This model can be tuned to MOTOR ON from 2.5 minutes to 1hour & MOTOR OFF from half an hour to 10 hours this means it too has an automatic motor on/off system … In this duration of MOTOR ON unexpectedly if water source falls down, immediately our’s dry run prevention will be activated & puts OFF motor immediately other wise if source is good, motor will be on up to motor on time tuned as actual.

Visual Indications :

Four stage water level indicator for over head tank, water flow indication(Running Line), voltage level indication, power on indication and auto/manual indication.

Features:

Switch on the panel if water tank is in required mode and switch off the panel at tank full. This is a product mainly focused to help people with submersible pumps who previously had little control over the functionality of the pump and had to start manually and stop the pump with all those uneasy methods. which make the operation of these pump difficult for novice users, keeping in mind the ease of use we developed this system which makes the operation of these pumps a child’s play. It is an unique device for single phase submersible pumps. Low AC Voltage sensing circuit to avoid polarization of electrodes in water. These special stainless steel plastic molded conductive electrodes are Long life sensors and do not require frequent cleaning or replacement.

How It Works : Automatically starts the motor when the water level in the over head tank drops below a pre-defined level (normally 50%) and switches off the motor at tank full or the sump water level drops below foot valve level , this ofcourse works due to the automatic motor on/off system ….

Dry Run

Due to faulty foot valve or air leakage in the pipe if the motor runs dry then it gets switched off automatically and gives fault indication. For more details please watch video demo.

Voltage Cut-off

Automatic Water Level Controller TIC-BTA automatically switches-off the pump if the supply voltage drops below 160V or Crosses 250V.

Surge protection

Built in surge protection is the Main features of TIC series.

Need

The Optional Need soft switch is provided to Switch on the motor irrespective of the water level in over head tank.

Toggle Bypass Switch.

The optional rocker switch is provided to bypass system operation in case of system failure. so no need to disconnect the system when it gets failed. Manual mode is used to Draw the water directly from the pump for activities like car wash, front area wash, tank cleaning, watering the plants Etc….

Power ON/OFF Switch.

Small rocker switch to select Power On/Off operation.

Application:

The product is automatic , best and most reliable water level controller and is most suitable for almost all site conditions water tank for maintaining level automatically, can be used to control water inflow or outflow, by means of direct pump control or acting as a control switch of a magnetic or combination starter.

Suitable for

 Bore well submersible pumps.
 Jet Pumps,
In TIC timer series varients are available cycling and clock type for any type of pump.
