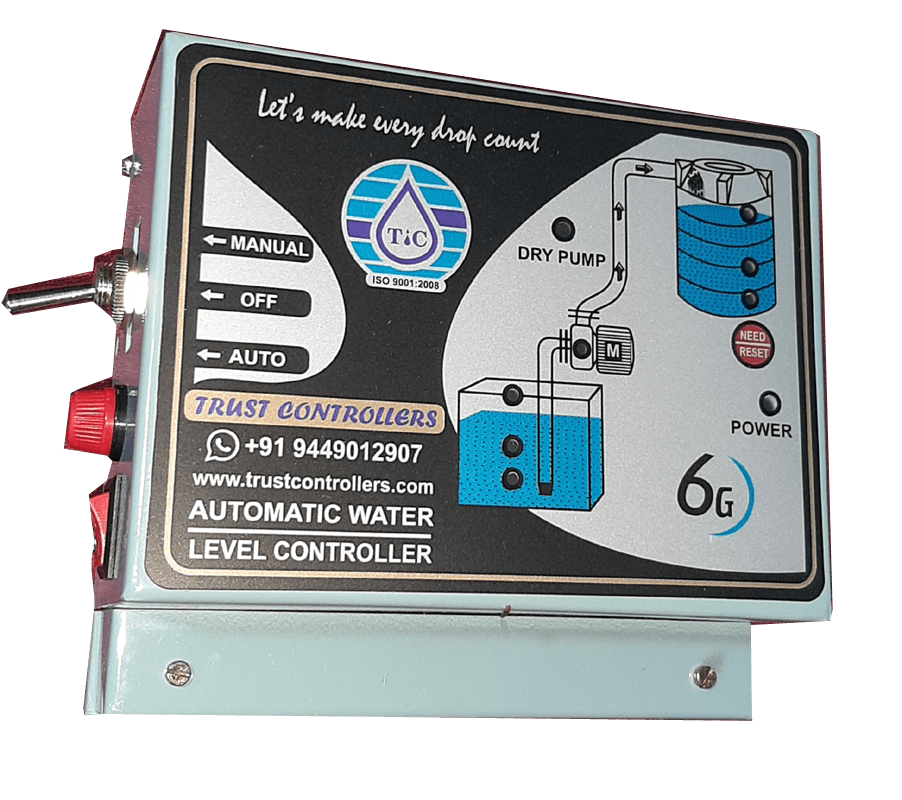

AUTOMATIC WATER LEVEL CONTROLLER WITH INDICATOR 6G
6GSR (Generally used SUMP TO TANK, MCB/SWITCH/DP TYPE)
Best and most reliable water level controller , this is what describes this product best, it has, three level of indication for water in tank and four indications for water running in line.
Visual Indications : Three sump levels, three over head tank indication. Flow, motor on, dry run, power on.
Features: This water level controller has an automatic motor on/off which can switch on or switch off the pump, to maintain the pre defined water level at the storage tanks.
Low AC Voltage sensing circuit to avoid polarization of electrodes in water. These special stainless steel plastic molded conductive electrodes are Long life sensors and do not require frequent cleaning or replacement.
Its has the following unique feature:
1) When tank is in reserve mode or empty it automatically starts the motors if water is present in the pipeline that indicates that it has automatic motor on/off..
2) If water is present in the line it indicates the presence on the unit(Flow Indicator).
3) water tank automatic switch which indicates water levels reaching in tank, which is helpful if there are open taps, blockage, leakage or damage in the pipeline connected to the upper head, ground or the desired storage tank.
4) It green colored 2 level indications (50%,100%)red indicates below 50% of water in tank as well as 3 level indications (foot valve level, half and full ) of sump tank.
5) On motor symbol white colored indication for motor ON & red colored indication for dry run of motor.
6) Has rocker switch to select Auto/manual operation but the water tank automatic swtich makes it easy to use…
7) Has soft touch ‘NEED’ button to switch ON the motor irrespective of any level in the overhead tank
Application:
- mono block/openwell submarsible pumps (sump motors)
System is suitable only for single phase pump sets of maximum 1.5 H. P. ratings.
This is the best and most reliable Water level controllers Indicator which is is highly recommended for metro cities or areas where drinking water is supplied through pipelines which are further distributed in homes, hotels, societies etc.
6GDR (Generally used BOREWELL TO TANK/SUMP,PUSH BUTTON/DUAL TYPE STARTER)
Automatic Water Level Controller For Single Phase Submersible Pumps Panel Driver (Single phase to three phase). This is a unique device for submersible Pump Up to 5 HP Capacity. Our submersible panel drive is the most suitable device for start/Run capacitors Panel Driven Water Pumps. It increases the life of motor to work for year. Application Like Residential Buildings, apartment’s, Commercial Complexes, Industrial Buildings, Hotels, Hospitals, . . . .Etc.
Visual Indications :
Three stage water level indicator for over head tank, water flow indication(Running Line), power on indication.
Features: Switch on the panel if water tank is in required mode and switch off the panel at tank full.
This is a product mainly focused to help people with submersible pumps who previously had little control over the functionality of the pump and had to start manually and stop the pump with all those uneasy methods. which make the operation of these pump difficult for novice users, keeping in mind the ease of use we developed this system which makes the operation of these pumps a child’s play.
It is an unique device for single phase submersible pumps.
Low AC Voltage sensing circuit to avoid polarization of electrodes in water. These special stainless steel plastic molded conductive electrodes are Long life sensors and do not require frequent cleaning or replacement
How It Works : Automatically starts the motor when the water level in the over head tank drops below a pre-defined level (normally 50%) and switches off the motor at tank full or the sump water level drops below foot valve level.
Dry Run
Due to faulty foot valve or air leakage in the pipe if the motor runs dry then it gets switched off automatically and gives fault indication.
Need
The Optional Need soft switch is provided to Switch on the motor irrespective of the water level in over head tank.
Toggle Bypass Switch.
The optional Toggle switch is provided to bypass system operation in case of system failure. so no need to disconnect the system when it gets failed.
Power ON/OFF Switch.
Has rocker switch to select Power On/Off operation.
Application:
The product is suitable for almost all site conditions water tank for maintaining level automatically, can be used to control water inflow or outflow, by means of direct pump control or acting as a control switch of a magnetic or combination starter.
Sutable for
- Bore well submersible pumps/dual starter operating motors.
- Jet Pumps,
6GDR3A (Generally used BOREWELL TO TANK/SUMP,PUSH BUTTON/DUAL TYPE STARTER)
Automatic Water Level Controller For Three Phase Submersible Pumps Panel Driver (three phase). This is a unique device for Three Phase submersible pumps Upto 40 HP capacity. Our submersible panel drive is the most suitable device for Any Type of 3 phase Pump Water Management Systems Like Mono Block Pumps, Centrifugal pump, Submersible Pump, . . .Etc. It increases the life of motor to work for year. Application Like Residential Buildings, apartment’s, Commercial Complexes, Industrial Buildings, Hotels, Hospitals,….Etc.
Visual Indications :
Three stage water level indicator for over head tank, water flow indication(Running Line), power on indication.
Features: Switch on the panel if water tank is in required mode and switch off the panel at tank full.
This is a product mainly focused to help people with submersible pumps who previously had little control over the functionality of the pump and had to start manually and stop the pump with all those uneasy methods. which make the operation of these pump difficult for novice users, keeping in mind the ease of use we developed this system which makes the operation of these pumps a child’s play.
It is an unique device for single phase submersible pumps.
Low AC Voltage sensing circuit to avoid polarization of electrodes in water. These special stainless steel plastic molded conductive electrodes are Long life sensors and do not require frequent cleaning or replacement
How It Works : Automatically starts the motor when the water level in the over head tank drops below a pre-defined level (normally 50%) and switches off the motor at tank full or the sump water level drops below foot valve level.
Dry Run
Due to faulty foot valve or air leakage in the pipe if the motor runs dry then it gets switched off automatically and gives fault indication.
Need
The Optional Need soft switch is provided to Switch on the motor irrespective of the water level in over head tank.
Toggle Bypass Switch.
The optional toggle switch is provided to bypass system operation in case of system failure. so no need to disconnect the system when it gets failed.
Power ON/OFF Switch.
Has rocker switch to select Power On/Off operation.
Application:
The product is suitable for almost all site conditions water tank for maintaining level automatically, can be used to control water inflow or outflow, by means of direct pump control or acting as a control switch of a magnetic or combination
Suitable for
- Bore well submersible pumps/dual starter operating motors.(3 phase motors).
- Jet Pumps,
